Zhiyun-Tech WEEBILL-3 Overview

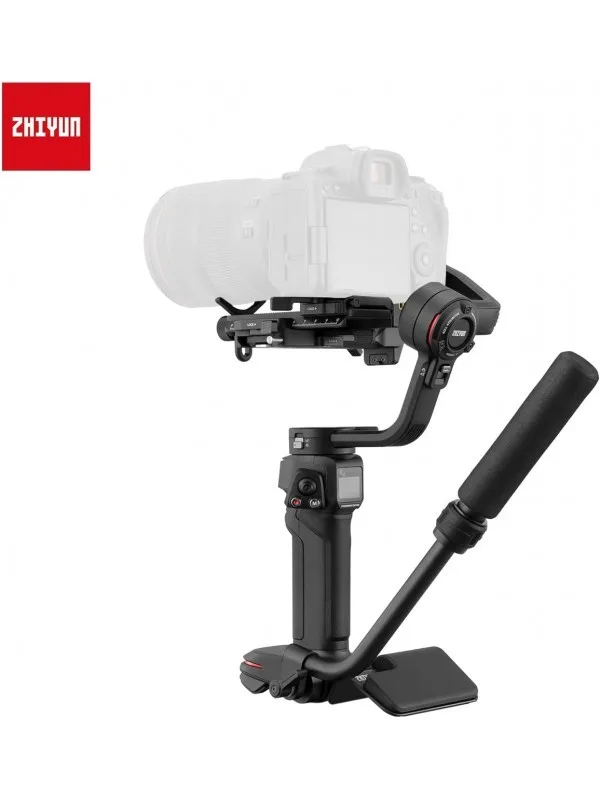

Introducing ZHIYUN WEEBILL 3

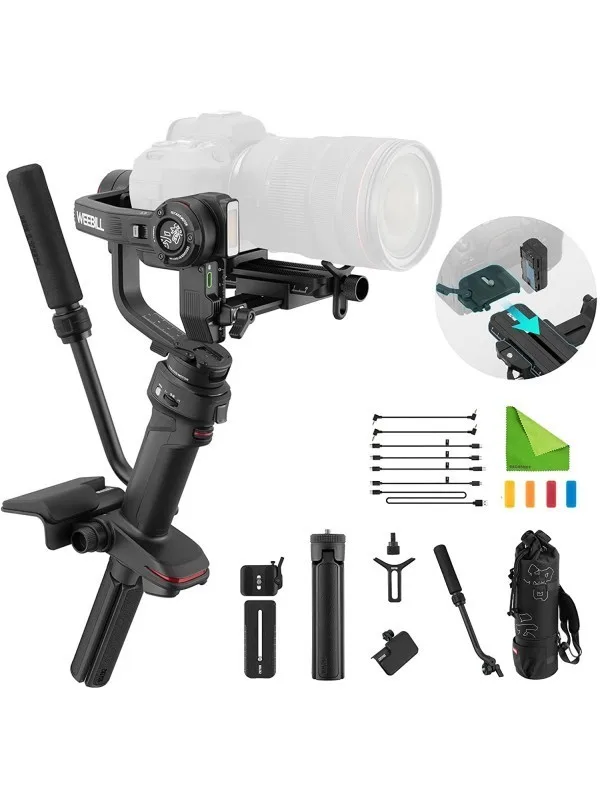

The WEEBILL-3 Handheld Gimbal Stabilizer Combo from Zhiyun-Tech has the same improved design as the WEEBILL-3 and includes an extendable sling grip set and backpack to bring the bundle on your next run-and-gun shoot. Forgo bringing additional accessories on shoots, thanks to the gimbal's built-in microphone and fill light. Both the microphone and fill light are integrated into the optimized sling structure of the gimbal and avoid adding heft to its design. View your settings with the 0.96" OLED touchscreen and toggle between modes or parameters with the various buttons.

Three built-in 2600mAh batteries power your WEEBILL-3 for up to 21 hours and can even charge your camera with quick charge technology. Dual quick release plates with 1/4"-20 screws prevent the need to constantly rebalance your rig when switching to handheld or changing batteries. Two rosette mounts with 1/4"-20 threads allow you to incorporate the sling grip extension handle and wrist rest, while a 1/4"-20 thread at the bottom of the gimbal supports the included tripod accessory. Control for both the gimbal and camera can be achieved by connecting one of the many control cables and utilizing either the onboard buttons or the smartphone app via the gimbal's Wi-Fi and Bluetooth capabilities.



Compatibility
For a full list of compatible cameras, please see the most current compatibility information on the Zhiyun-Tech website page or in PDF format.
Revised Design with Extendable Grip Set
  • L-shaped body capable of standing on its own
  • Improved Sling 2.0 structure
  • Greater battery capacity of 21 hours

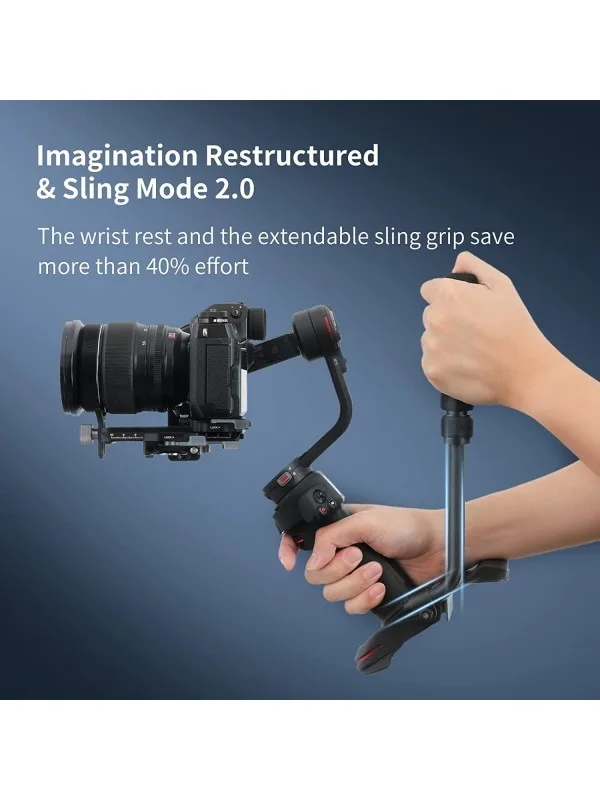

  • Extendable sling grip set included with handle and wrist rest
Built-In Microphone
  • Noise-cancelling, Hi-Fi, cardioid recording
  • 3.5mm general audio port

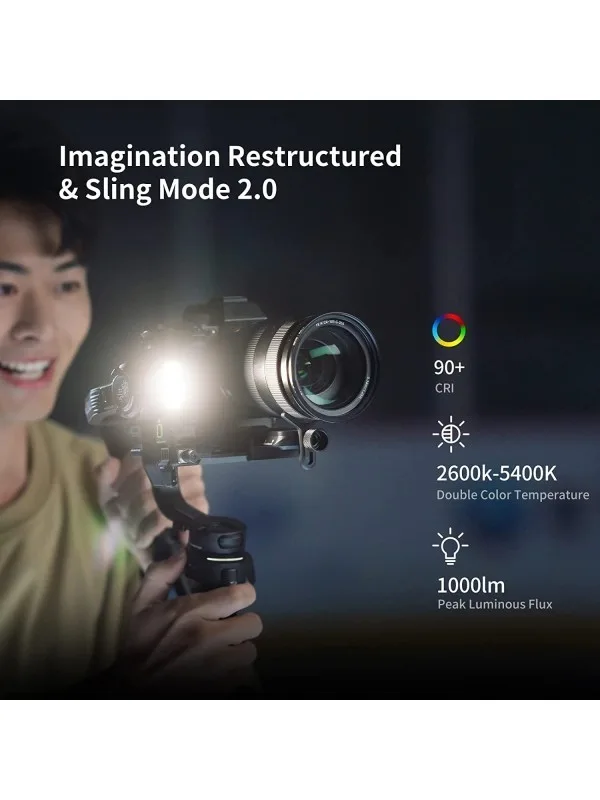

Built-In Fill Light
  • 1000 lumens of brightness
  • Adjustable color temperature
  • Includes four colored filters
Upgraded Motor
  • Compact and powerful motors for tilt, roll, and pan
  • 360° pan, 310° tilt, and 340° roll
  • Optimized stabilization algorithm
  • Super lightweight body and improved AXIS locks
Upgraded Quick Release System
  • Dual quick release plates allow you to mount cameras without rebalancing
  • Change camera batteries without rebalancing
  • Magnetic wrench embedded in gimbal design to mount and secure the camera
Gimbal Controls
  • Canon, Sony, and Panasonic control cables connect compatible DSLRs to gimbal controls

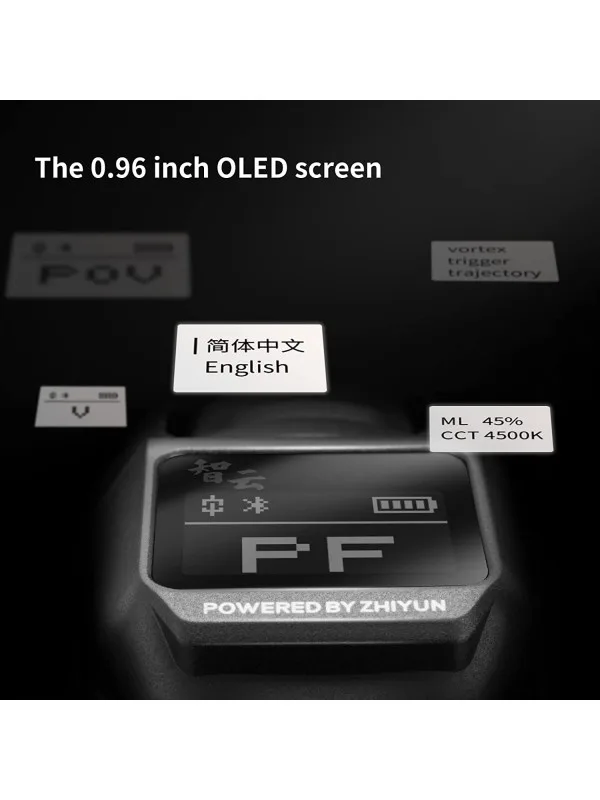

  • 0.96" OLED touchscreen toggles between shooting modes
  • Trigger button can be customized to different shooting modes
  • Wheel control can be customized to adjust camera parameters, gimbal movement, focus, and zoom
  • Compatible with TransMount follow focus/zoom units and transmission systems
  • Compatible with the ZY Play app
  • 2.4 GHz Wi-Fi operating frequency, Bluetooth 5.0
Compare
Category:

Description

Zhiyun WEEBILL-3 Combo Specs

Grip Design Handheld Ring

Gimbal

Number of Axes 3-Axis (Pitch, Roll, Yaw)
Rotation Range Yaw (Pan): 360°
Pitch (Tilt): 310° (-130 to 180°)
Roll: 340° (-280 to 60°)

Compatibility

Camera Control On Compatible Models
Camera Mounting Screw 2 x 1/4″-20 Male

Connectivity

Inputs/Outputs 1 x 1/8″ / 3.5 mm (Audio) Input
1 x USB Type-C Input
1 x USB Type-C (1 A 5 VDC Video) Input
1 x USB Type-C (1.8 A 12 VDC Power) Input
Wireless Frequency 2.4 GHz
Wireless Protocol Bluetooth 5.0

Battery

Battery Type 3 x 18650
Battery Capacity 2600 mAh
Battery Runtime 21 Hours
Battery Charging Time 2 Hours
Battery Chemistry Lithium-Ion

Power

Operating Voltage 9.8 to 12.6 VDC
Operating Current 160 to 6000 mA

General

Display Type Fixed Touchscreen OLED
Mounting 3 x 1/4″-20 Female
2 x 1/4″-20 Male
Dimensions 13.5 x 8.1 x 2.9″ / 342 x 206.5 x 72.5 mm (Folded)
Weight 2.4 lb / 1.1 kg
