Sennheiser XSW 1-ME3 Overview

The XSW 1-ME3-A UHF Headmic Set from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to keep your hands free and capture audio for live sound applications and performers who dance and sing.

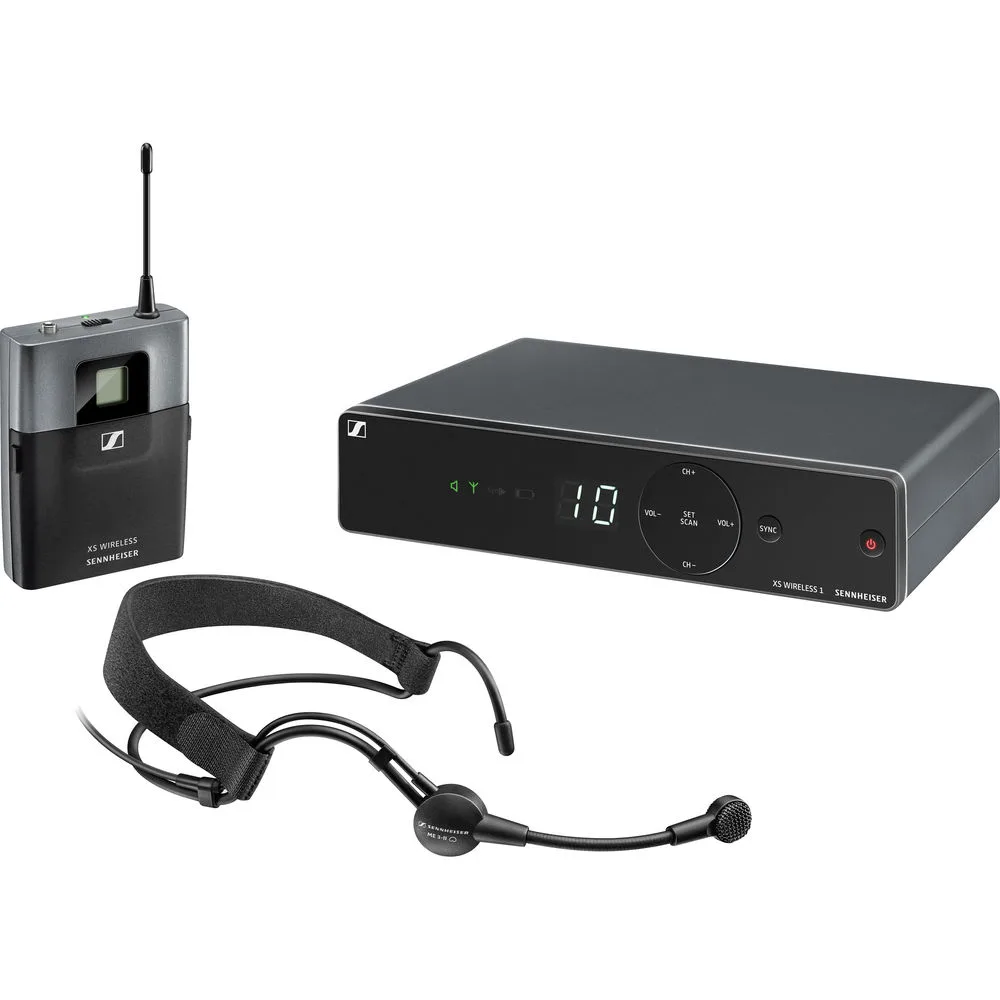

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and a headset microphone. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

Featuring Sennheiser's evolution ME 3-II headmic
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Diversity reception
Compare

Sennheiser XSW 1-ME3 Specs

System
Modulation
Wideband FM
Frequency Range
A: 548 to 572 MHz
Switching Bandwidth
Up to 24 MHz
Signal to Noise Ratio
≥ 103 dBA
Total Harmonic Distortion
≤ 0.9%
Temperature Range
Operation: 32 to 104°F (0 to +40°C)
Storage
-4 to 158°F (-20 to 70°C)
Transmitter Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)

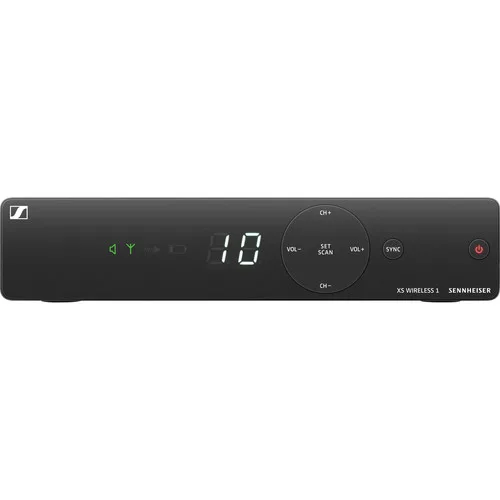

Receiver
Principle
Double superheterodyne
Diversity
Antenna switching diversity via internal antennas
Sensitivity
< 3 μV at 52 dBA RMS S/N (at peak deviation)
Frequency Response
50 Hz to 16 kHz (-3 dB)

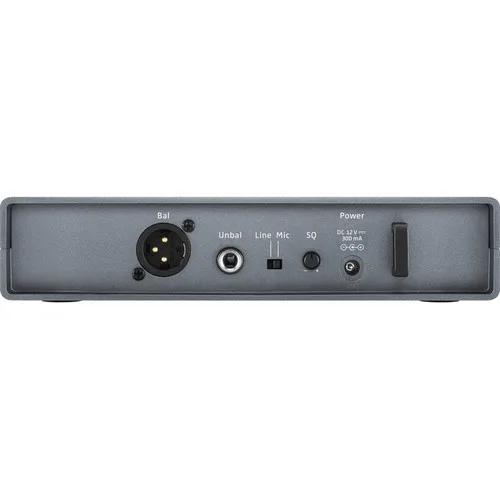

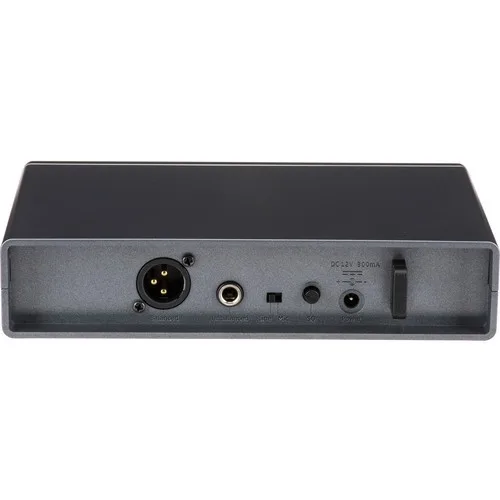

Max Output Voltage
At Peak Deviation, 1 kHz AF
1/4″ (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu
Adjustment Range
Audio: 45 dB, adjustable in 5-dB steps
Power Supply
12 VDC nominal, 300 mA
Squelch
Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level
20 dB, switchable
Material of Construction
ABS housing
Dimensions
7.9 x 1.7 x 5.0″ (200 x 42 x 127 mm)
Weight
12 oz (340 g)

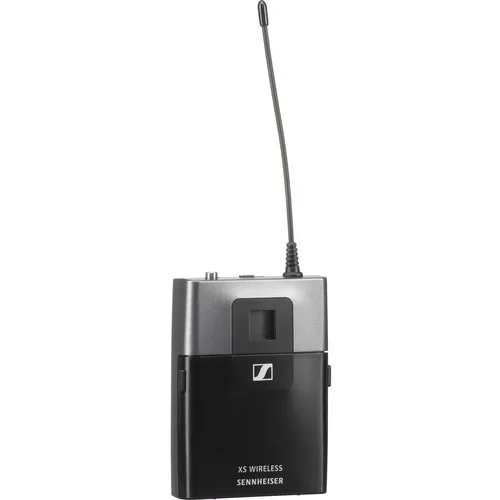

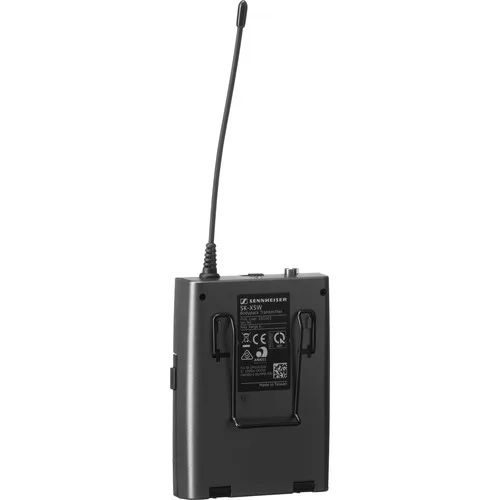

Bodypack Transmitter
Output Power
10 mW
Frequency Response
Line: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz

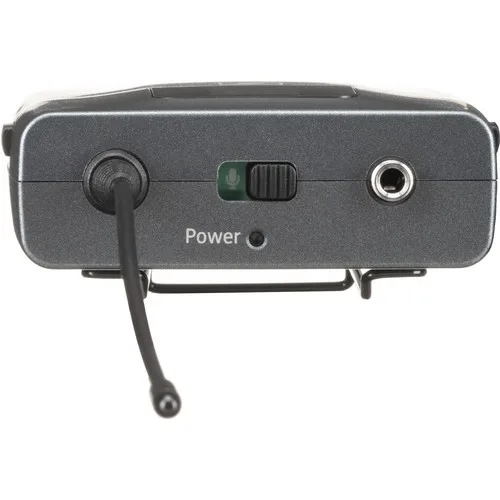

Audio Input
1/8″ (3.5 mm) jack socket
Input Voltage
Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply
2 x AA batteries, 1.5 V
Operating Time
Approximately 10 hours
Adjustment Range
Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction
Rugged ABS housing
Dimensions
2.8 x 3.8 x 1.1″ (71 x 96 x 28 mm)
Weight
3.4 oz (95 g)

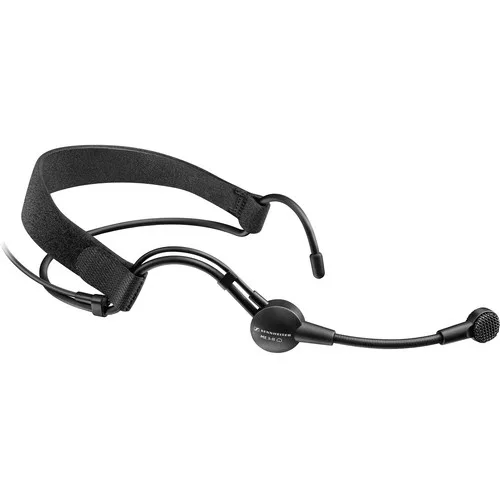

Headset
Microphone Type
Condenser, pre-polarized
Sensitivity
1.6 mV/Pa
Polar Pattern
Cardioid
Max SPL
150 dB
Packaging Info
Package Weight
2.81 lb
Box Dimensions (LxWxH)
13.7 x 13.6 x 3.45″

In the Box

  • Sennheiser XSW 1-ME3-A UHF Headmic Set (A: 548 to 572 MHz)
  • Foam Windshield
  • NT12-5 CW Power Supply
  • 2 x AA Batteries
  • Limited 2-Year Manufacturer Warrant
